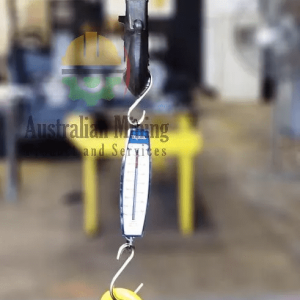

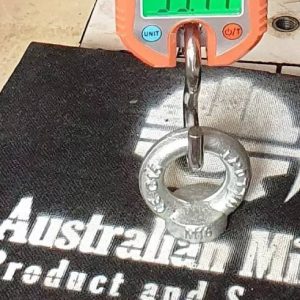

Our engineering team calculates the required pull force needed based on the liner size and the specific application. The powerful magnets are permanently bonded and encapsulated into the liners along with an internal design that directs the magnetic force to the mounting side of the liner. This maximises the holding force to prevent unwanted removal of the liners after installation.
Magnetic Wear Patch - Wear Protection and sealing that can be recycled
- Home
- Products
- Wear Linings
- Rubber
- Magnetic Wear Patch
Reduce unscheduled maintenance and spillages
Magnetic Wear Patch - Wear Patches & Liners with Magnetic fixing, using high-powered neodymium permanent magnets

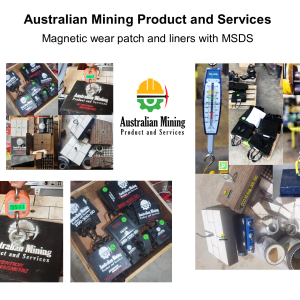

All our wear patches are covered with an Australian Material safety Data Sheet and exceed the holding limits specified by WorkSafe

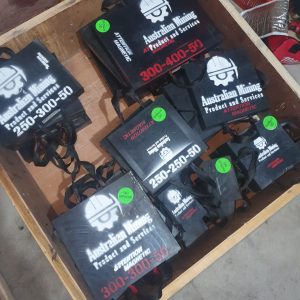

sizes 150 mm wide x 100 mm long and 50 mm thick
200 mm square and 50 mm thick
250 mm square and 50 mm thick
300 mm square and 50 mm thick
200 mm wide x 300 mm long and 50 mm thick
300 mm wide x 400 mm long and 50 mm thick
custom sizes available against a minimum order quantity
These temporary, recyclable wear protection patches are easy to install, need no tools,as the magnetic hold the patch in place
Avoid a call out by the EPA and are a useful addition to every sites maintenace kit
Magnetic wear patch and customised wear liners with ceramic or CCO face with Magnetic back have averted major environmental and financial critical disasters.
ALWAYS IN STOCK
Magnetic wear patches and customised wear liners with ceramic or CCO face with Magnetic back avert unscheduled shutdowns, that result in many hours of loss production.

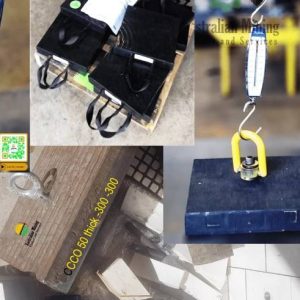

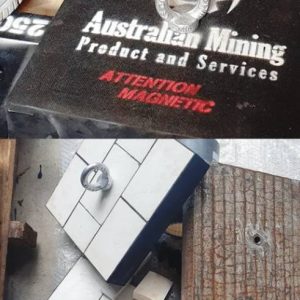

Ceramic or CCO-faced magnetic wear liners are custom manufactured to your application requirements and available in thicknesses and sizes to complement the application
High Heat Tolerances
Magnetic Wear Patch and Liners reduce costly unscheduled downtime and maintenance frequencies to increase plant availability and profitability.
We request that you return to us, all used patches and liners, for safe disposal that meets environmental best practices.
- tested to ensure long life and protection against impact, cut, tear, and abrasion
- are very simple to place in position
- safe and we make every effort to comply with over-head object safety requirements by using extremely powerful magnets that hold the liner against the chute wall
- use a durable cotton-based handle to make carrying easy and that is essential for the removal
Much is being said about Magnetic wear liners, every site needs to conduct its safety overview as well as evaluate how the site complies with WorkCover and safety issues
Australian Mining Products and Services – design, manufacture, and supply ceramic-faced magnetic-backed liners.
Manufacturing has been tried and tested for many years now and our manufacturing supply plant has been making and improving these liners for many years now
Our magnetic-backed ceramic-faced liners ensure that there is a balance in holding strength and application safety. When manually placing magnetic-backed ceramic-faced linings, a high holding strength is a serious health problem.
They are dangerous.
Not just due to the ability to snap into place and sever fingers and limbs (huge pinch point issues) but also due to magnetic field generation, interference with electrical/control signals, and more importantly a health hazard for anyone nearby with a pacemaker or a bio electrically assisted personal health component (bionic ear, etc).
Our holding strength design is more than ample for the application requirements and does not create the health issues of stronger magnetic fields, (although the health risks are still there – they are not as significant for higher strength magnets)
Many liner installations are not suitable for traditional fastening systems and are good candidates for our magnetic mounting technology.
Magnetic Mounting
We have several standard liner sizes for common applications, but we can custom-build any wear protection systems that solve specific problems. We start with the application in mind. Our liners contain abrasion.
In addition, we use different ceramic chemistries and a wide variety of shapes like custom-cut tiles, cubes, bricks, balls, or cylinders to create the right product for the application.

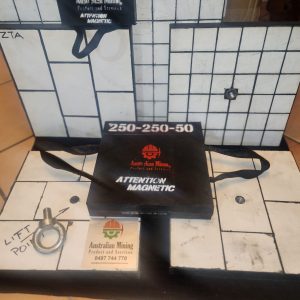

(Below) Launder Liner with Rubber-Ceramic held in place with internal magnets – no holes or hardware needed.
Magnetic Liner Advantages:
- Removal of all hot work permits
- Removal of all manual handling
- Safe handling is incorporated to effect quick installation as well as removal
- Occupational, Health, and safety requirements enhanced
- Faster install times return plant to operation- minimal downtime
- No external scaffolding required
- No fabrication penetration required
- Easy to install
- No bolting
- No clamping
- No welding
- No adhesives
- Fast Installation and removal
Faqs
How quickly can a Magnetic Wear Patch be installed?
Most patches can be fitted in minutes rather than hours, reducing shutdown times by 50–70% compared with traditional fastening methods.
Can Magnetic Wear Patches reduce downtime?
Yes. Fast installation and removal help minimise unplanned shutdowns and improve plant availability.
Are Magnetic Wear Patches custom-made?
Yes. Liners can be custom-manufactured in various thicknesses, sizes, and wear-face materials to suit specific operating conditions.
What materials are available for wear?
Options include ceramic-faced and Chromium Carbide Overlay (CCO) wear surfaces, selected to match the application’s abrasion and impact levels.
Are Magnetic Wear Patches safe to use?
Yes, when installed in accordance with site procedures. Operators should assess pinch-point risks and comply with workplace safety requirements for magnetic equipment.
How much does a Magnetic Wear Patch cost?
Typical prices start from around AUD $150–$500 per patch for standard sizes, while custom-engineered liners can range from AUD $1,000 to $5,000+, depending on size, material, and wear requirements.
We manufacture and supply sites around Australia
