Roto Lined HDPE pipes
We can use a variety of materials to line, but PE is the most common as it provides good performance in corrosion and wear resistance, is readily available, relatively straightforward to process, has well understood properties and good pricing.
Other lining materials include from the fluoropolymer families including ECTFE (ethylene-chlorotrifluoroethylene) is an alternating copolymer of ethylene and chlorotrifluoroethylene.
It is a semi-crystalline fluoropolymer (a partly fluorinated polymer), with chemical corrosion resistance properties.
Once a part is rotolined, it cannot be welded without risking damaging the lining.
The lining material chemically bonds to the substrate.
- The part must be able to fit within the swing area of one of our machines
- (we have multiple machines, one of which is capable of fitting a 20ft shipping container-sized part inside it, so easiest to visualise that – providing the part can fit within a 20ft container then it will fit in our machine);
- The maximum weight of a part is around 6000kg, although for enough volumes, we can of course engineer other solutions;
- We need to be able to apply heat directly to the outside surface of whatever it is that needs to be lined – this means we cannot typically line a double-walled part, or a section of a part that extends inside another part;
- Minimum lining thickness would be around 3mm. It is technically possible to line more than 25mm thickness.
The lining is seamless with no gaps – and can flow from inside a part to the sealing surfaces of flanges.
It is possible to line using multiple layers of material.
Rotolined parts use a thermoform material, therefore it is possible to plastic weld parts post-lining – either further fabrication, repairs and etc.

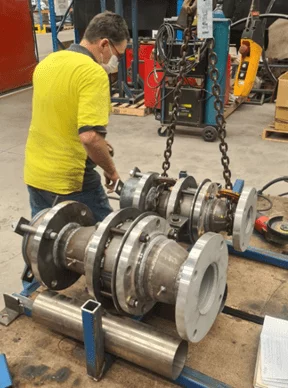

We are restricted with what photos and information we can share due to confidentiality constraints, however, we have been rotolining from quite small parts to large parts for some years.
We have a long term relationship with a major international player in the chemical transportation industry who we provide some large rotolined parts to.
The process itself if not particularly new, however, it is effectively not done elsewhere in Australia, and there are very few companies worldwide doing it – there is some information available via google with better photos than I can provide.
- Prepare the surface to be lined (typically sand blasting)
- Mount the part on the machine (this includes manufacturing framing/mounts and closures)
- The actual lining process itself where the part is running in an oven at up to 300 degrees
- Post-lining operations including trimming the openings, machining, various QC checks and etc
- External painting (if required)
- Any other steps which may be requested.
We manufacture and supply sites around Australia
